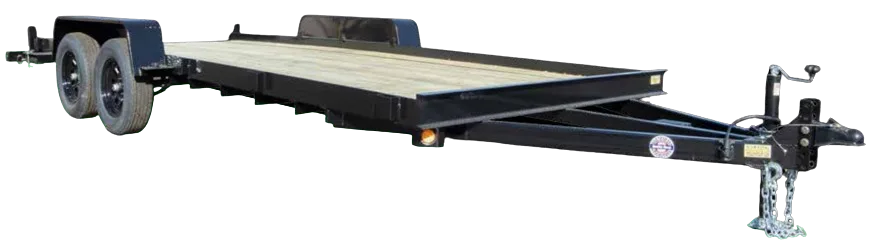

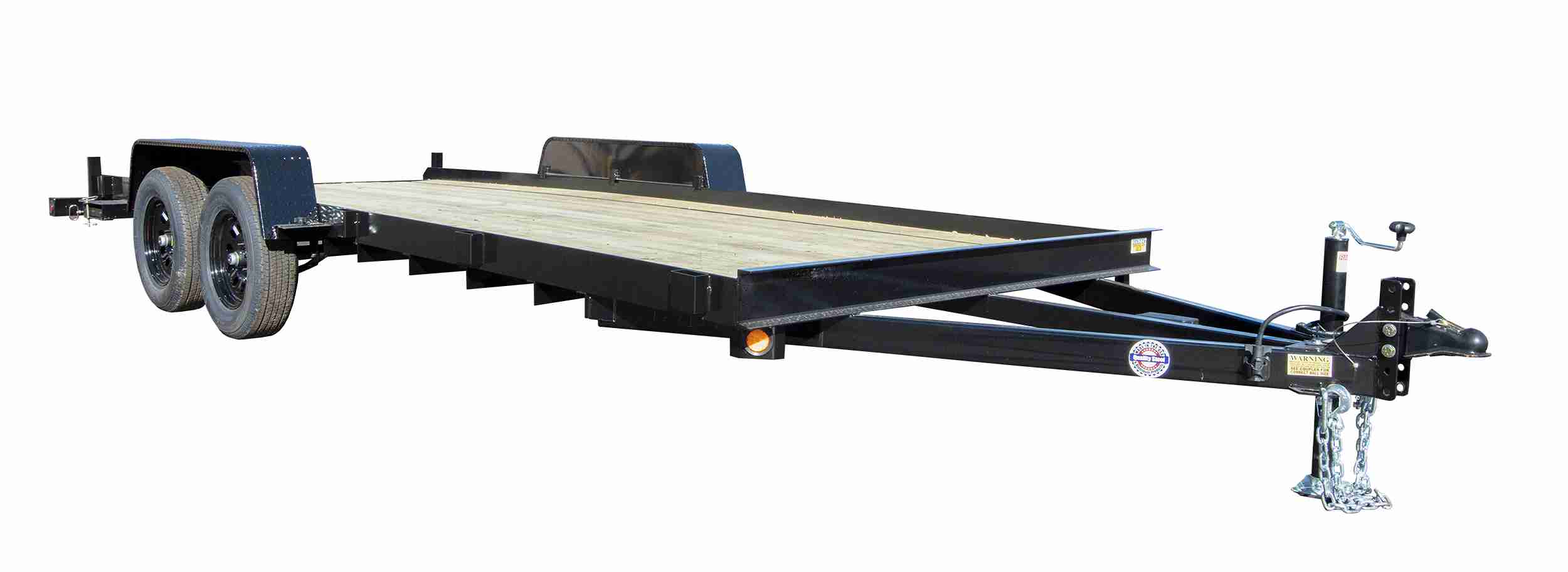

005 UTV TRAILERS
Because Quality Steel & Aluminum Products continuation of product improvements, specifications are subject to change without notice. Quality Steel and Aluminum Products reserves the right to make changes at any time in prices, colors, materials, equipment, specification and models. Photos may show optional equipment. Actual colors may vary due to print limitations.
ALL MEASUREMENTS ARE FOR STANDARD MODELS
STANDARD FEATURES
- 92-5/16 ADJUSTABLE COUPLER
- 9PAN STYLE - SUPER LOW
- 93 X 5 X 1/4" ANGLE FRAME
- 96" CHANNEL BULKHEAD
- 9REMOVABLE FENDERS
- 948" STORE UNDER PUNCHED RAMPS
- 9NO SIDE RAILS ON UNIT
- 9BREAK-AWAY BRAKE KIT
- 9SINGLE BRAKE AXLE
- 9EZ APPROACH DOVE TAIL
Color Options
Colors may vary slightly. Contact your local dealer for color samples.
International
Red
Cat
Yellow
John Deere
Green
New Holland
Blue
Graphite
Grey
Kubota
Orange
005 UTV TRAILERS
| TRAILER SIZE | CURB# | PAYLOAD | GVWR | GAWR | AXLE TYPE | PLUG | TIRE SIZE | SPARE TIRE MOUNT | RECESSED FLOOR D-RINGS | STAKE POCKETS | COUPLER | JACK | RAMPS | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12' | 82 X 14 UTV 5K | 1040# | 4000# | 5000# | 6000# | 1-6000#B SLIPPER | 7-WAY RV | 225/75R15 | NO | 0 | 10 | ADJ 2-5/16" | 2K TOP WIND A-FRAME | 48" PUNCHED S/UNDER |
| 82 X 14 UTV 6K | 1240# | 4000# | 6000# | 3500# | 2-3500#B SLIPPER | 7-WAY RV | 205/70R15 | NO | 0 | 10 | ADJ 2-5/16" | 2K TOP WIND A-FRAME | 48" PUNCHED S/UNDER | |
| 16' | 82 X 16 UTV 6K | 1280# | 4000# | 6000# | 3500# | 2-3500#B SLIPPER | 7-WAY RV | 205/70R15 | NO | 0 | 10 | ADJ 2-5/16" | 2K TOP WIND A-FRAME | 48" PUNCHED S/UNDER |
| 18' | 82 X 18 UTV 6K | 1320# | 4000# | 6000# | 3500# | 2-3500#B SLIPPER | 7-WAY RV | 205/70R15 | NO | 0 | 10 | ADJ 2-5/16" | 2K TOP WIND A-FRAME | 48" PUNCHED S/UNDER |
